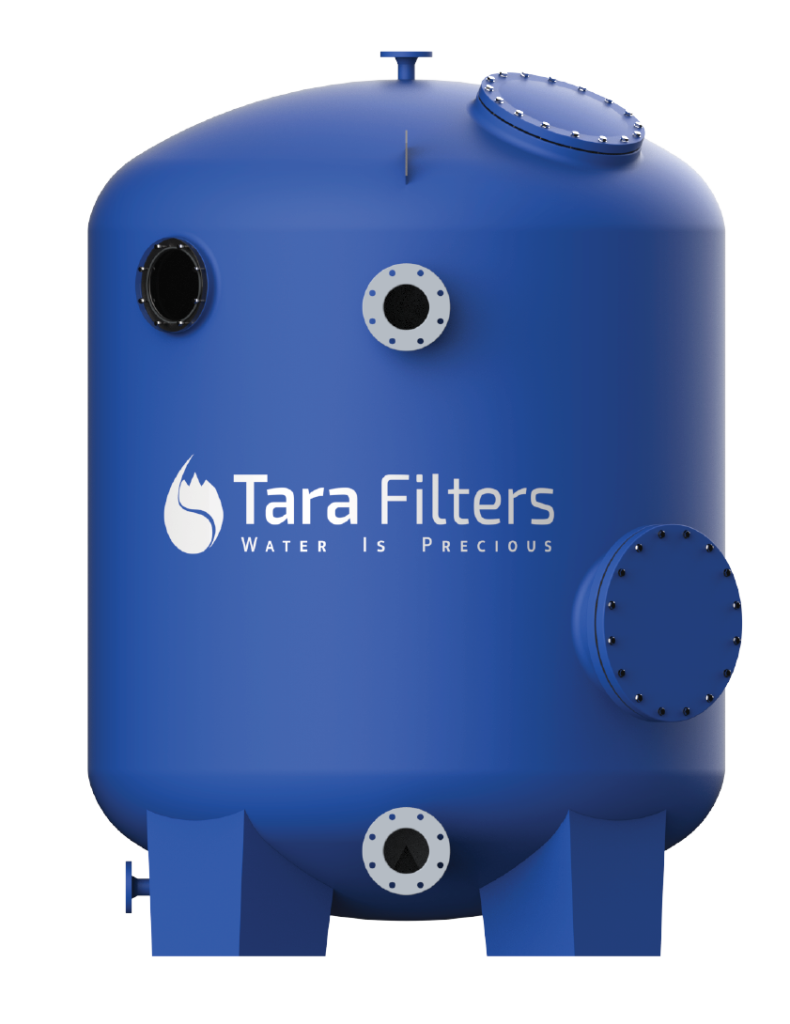

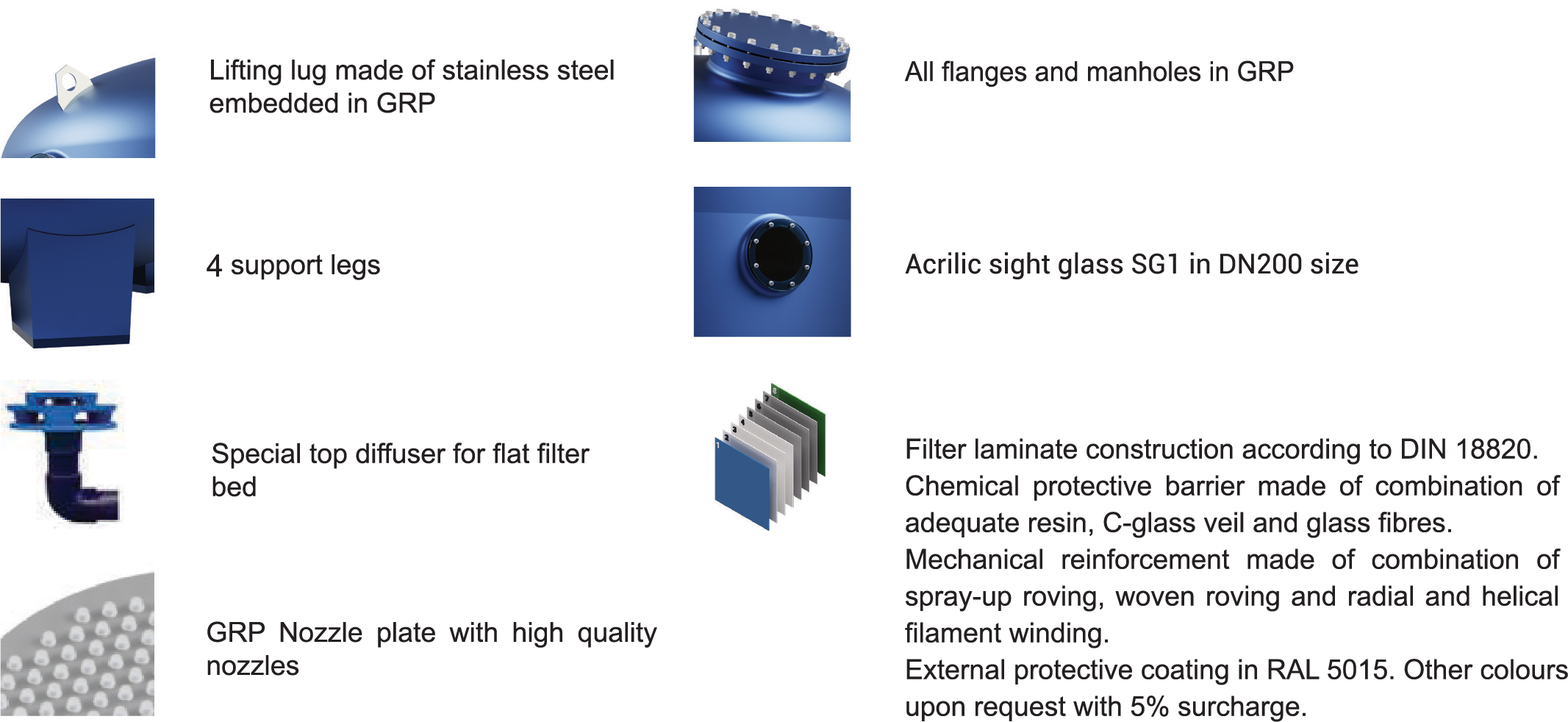

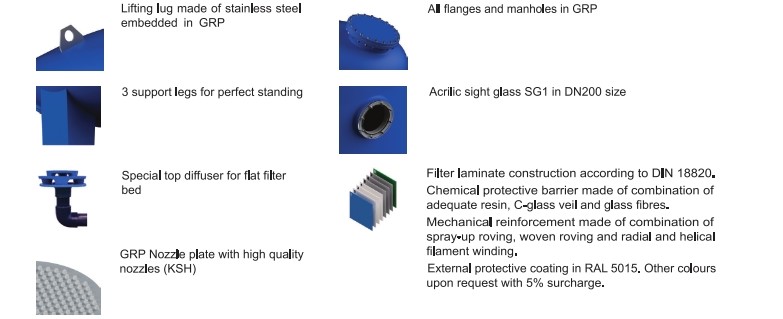

TN SERIES Technical details

  • EN 13121-3 standard
  • Diametar from 1000 mm to 2600 mm
  • Bed height 1200 mm (standard) and 1500 mm (optional)
  • Sight glass height from nozzle plate: 1300 mm (filter media bed height 1200mm)
  • All openings, flanges and accessories can be positioned and oriented according to the clients specific needs if technically possible


Higher working pressure filter on request.
