- Filters are designed according to DIN 19605 / 19643 /18820 standards and constructed according to
- AD-Merkblatt N1 and BS
- Diametar from 800 mm to 2600 mm
- Bed height 1200 mm (standard) and 1500 mm (optional)
- Filters are equipped with nozzle plate and high quality nozzles
- Flanges, internal components, piping and supporting legs are made from GRP
- 5 years warranty

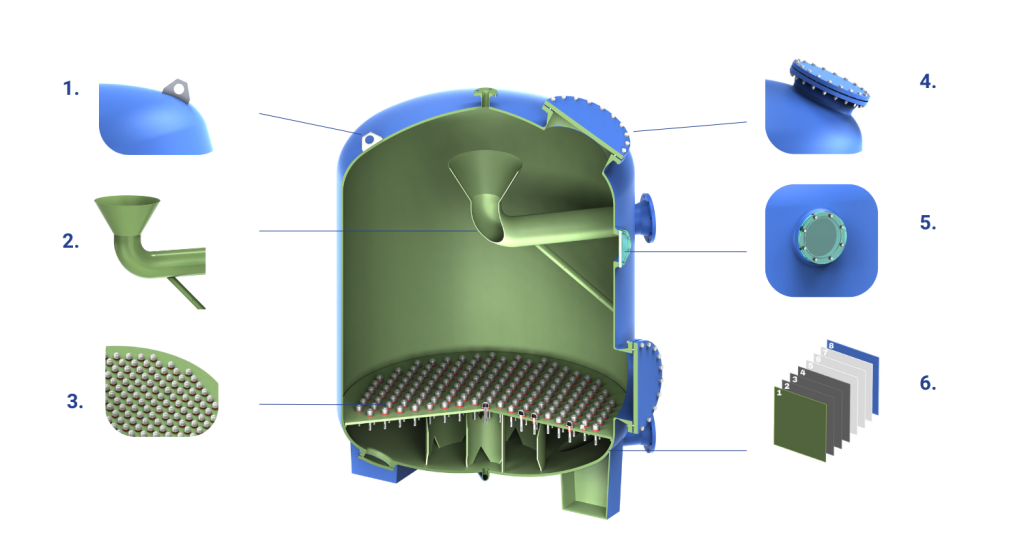

1. Lifting lug made of stainless steel embedded in GRP
2. GRP funel with reinforcement beam
3. GRP nozzle plate with high quality nozzles
4. All openings, flanges and accesories can be positioned and oriented according to the clients specific needs
5. Acrilic sight glass DN200
6. Filter design and lamination according to DIN 18820
Chemical protective barrier made of combination of adequate resin, C-glass veil and glass fibres. Mechanical reinforcement made of combination of spray-up roving, woven roving and radial and helical filament winding.
Technical details
• Maximum working temperature: 40°C
• Maximum working pressure: 2,5 bar
• Test pressure: 3,75 bar
• Sight glass height from nozzle plate: 1400 mm (filter media bed hight 1200 mm)
Additional options:
• Cylindrical height increasing: +3% per 100 mm. Bed height 1500 mm: +9%
• Vinylester lining for ozone (concentration max. 1 ppm): +10%
• Other flanges dimensions on request
• Working pressure filters 4 bar: price +25% (factor 1,25)
• Working pressure filters 6 bar: price +40% (factor 1,40)
• External protective coating in RAL 5015. Other colours upon request with 5% surcharge
Higher working pressure filter on request.
